Unleashing Performance for Labs and Production Lines Alike

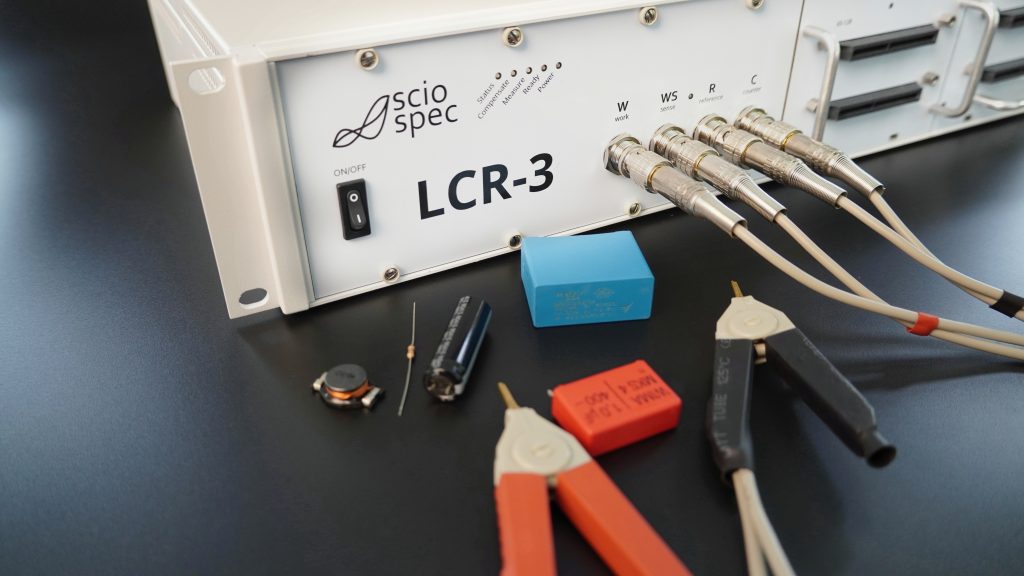

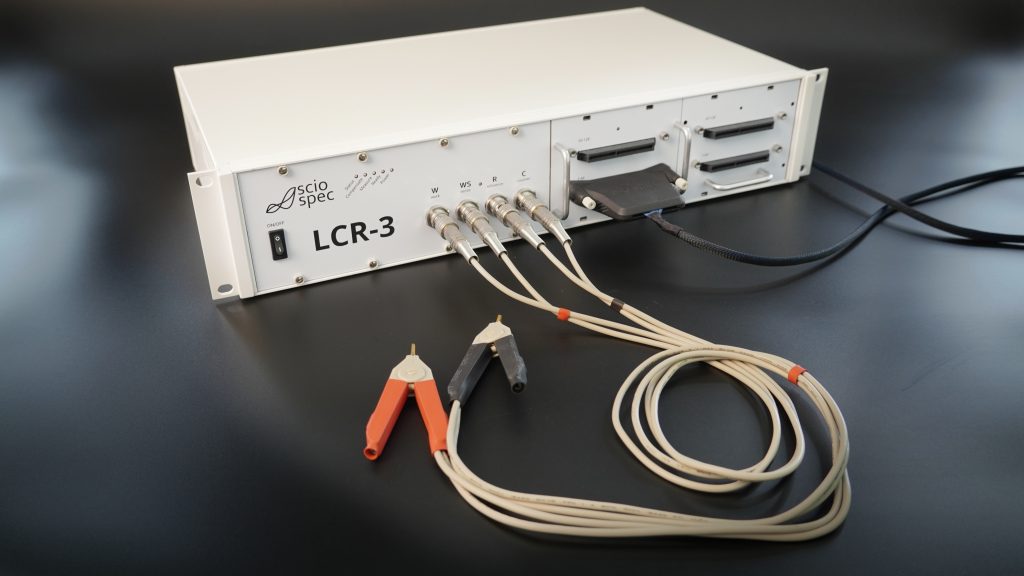

The Sciospec LCR-3 is your answer to professional-grade LCR measurements with a scalable, automation-ready design. Built on the same high-precision core as the compact LCR-1, the LCR-3 takes things further with a larger, configurable enclosure, optional integrated multiplexers, and native support for automated, multi-object testing. From quality control on production lines to advanced R&D setups, the LCR-3 delivers exceptional performance and unmatched adaptability.
While traditional LCR meters limit you to one sample at a time, the LCR-3 is made to scale. With optional integrated multiplexers, the system can handle up to 256 ports, all with ultra-low parasitics and true any-to-any functional mapping. Perfect for:
🔧 Multiplexing isn’t an afterthought it’s native to the LCR-3. And when you’re ready to go further, multi-module expansion is available for parallel measurements and stackable configurations.
Technical Specifications Technical Specifications
Feature | LCR-3 |
Frequency Range | 100 µHz to 10 MHz (opt. 40 MHz) |
Impedance Range | 1 mΩ to 1 TΩ |
Accuracy | 0.01% base precision |
Measurement Modes | L, C, R, Q, D, Z, ESR, phase, etc. |

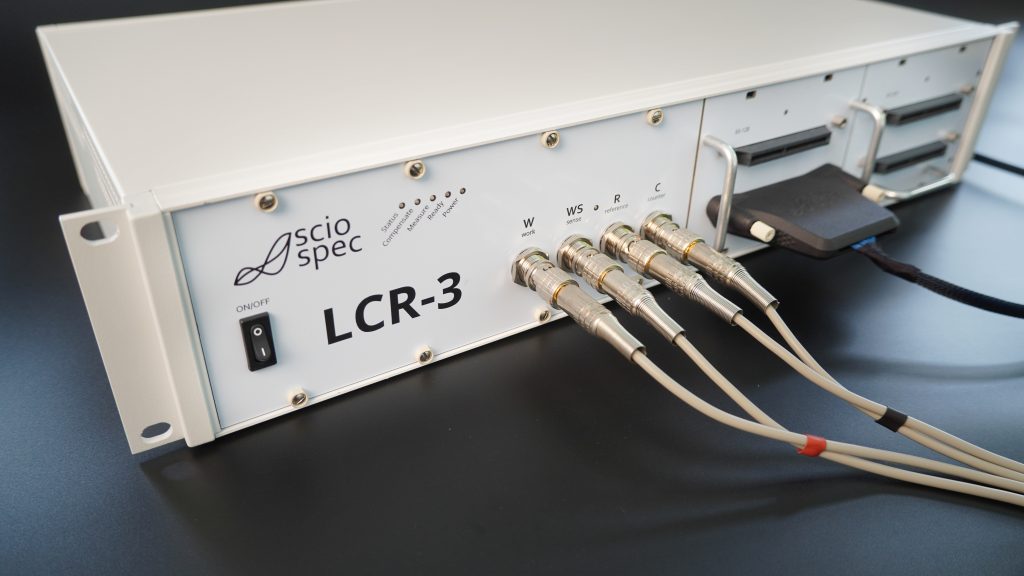

Electrode Configuration | 2, 3, or 4 terminal |
Multiplexing | Integrated, up to 256 ports |

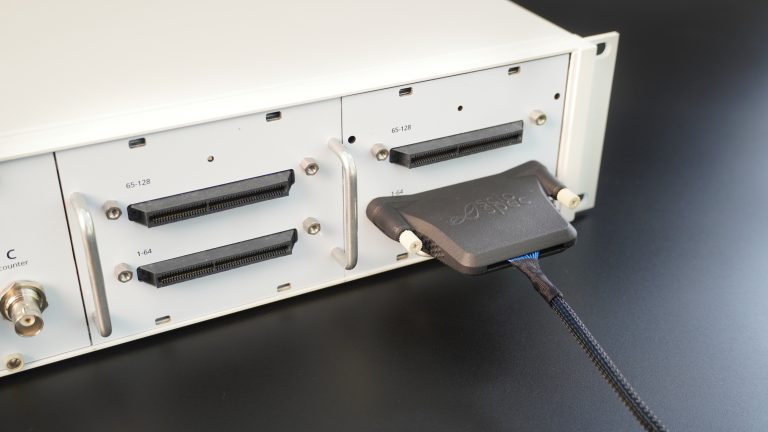

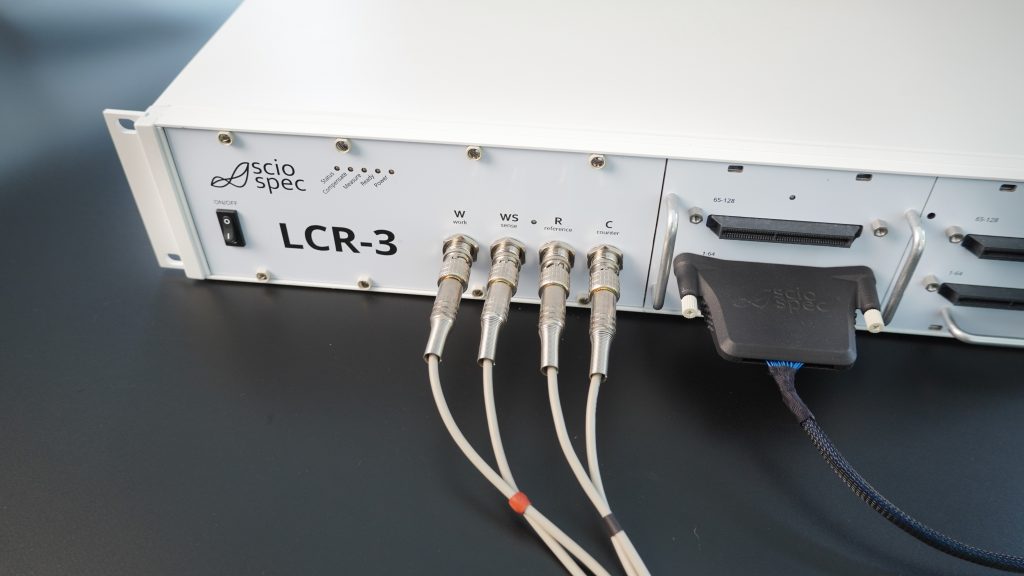

Connection Interface | SC98 connector or coaxial BNC |

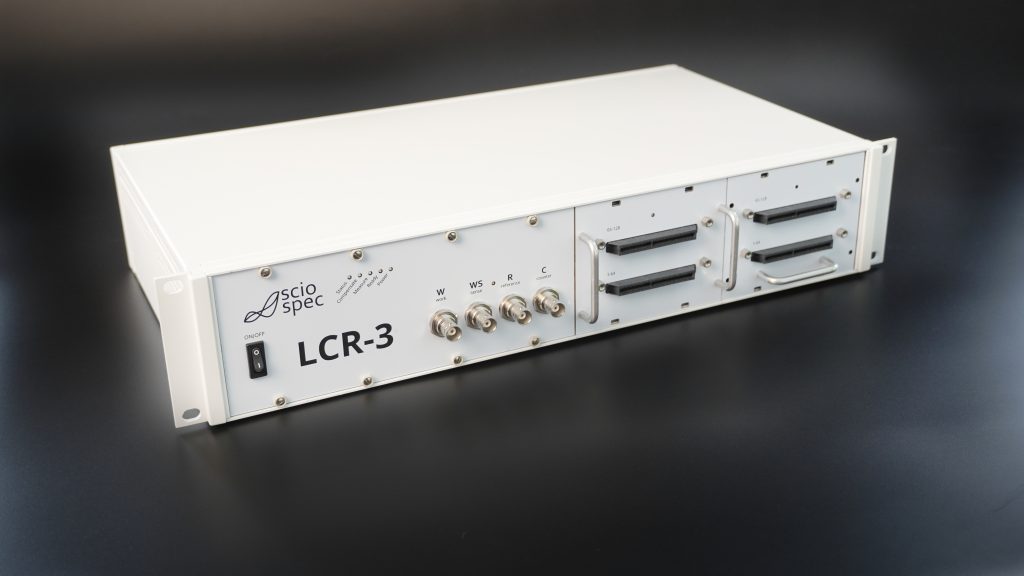

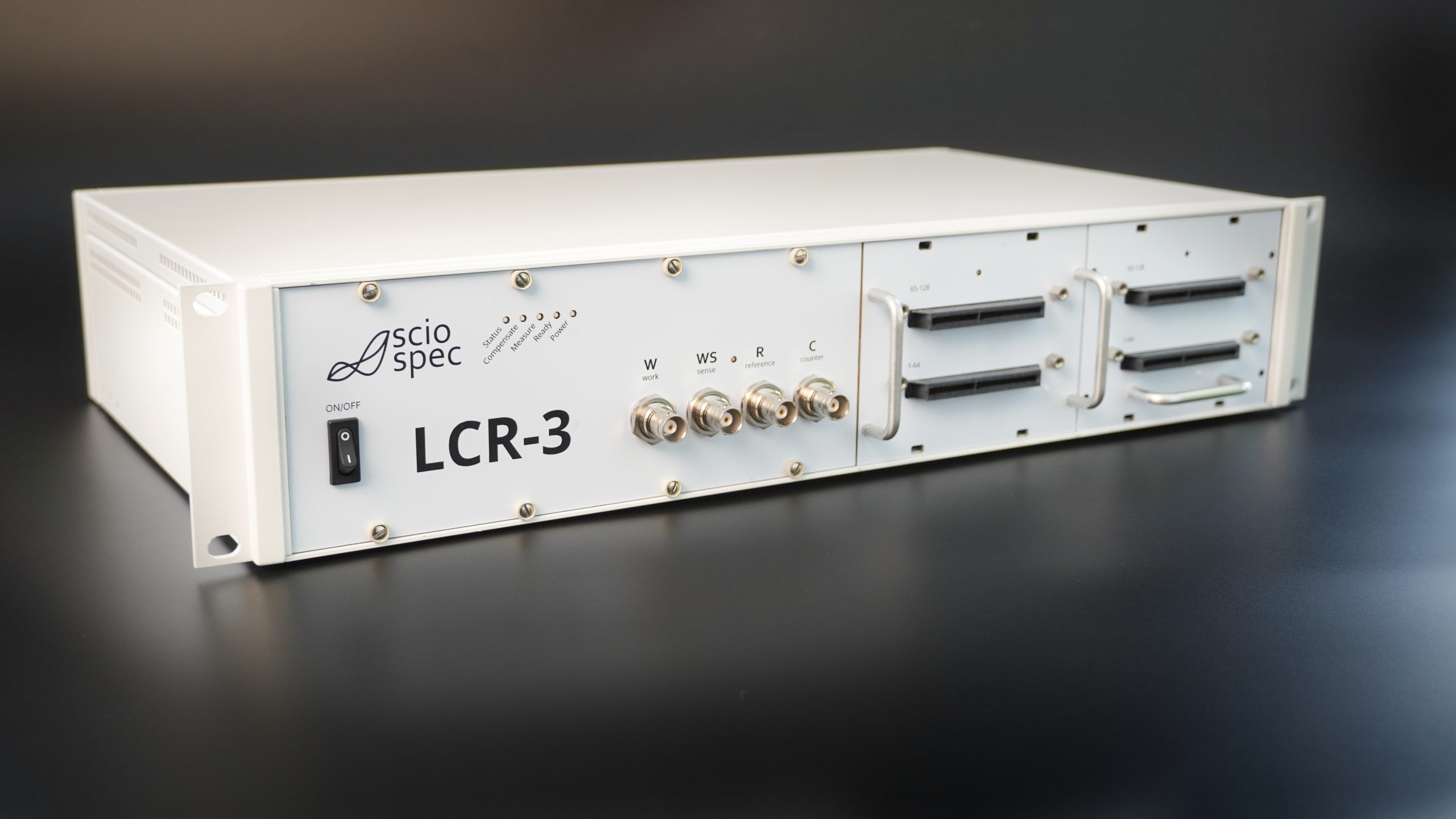

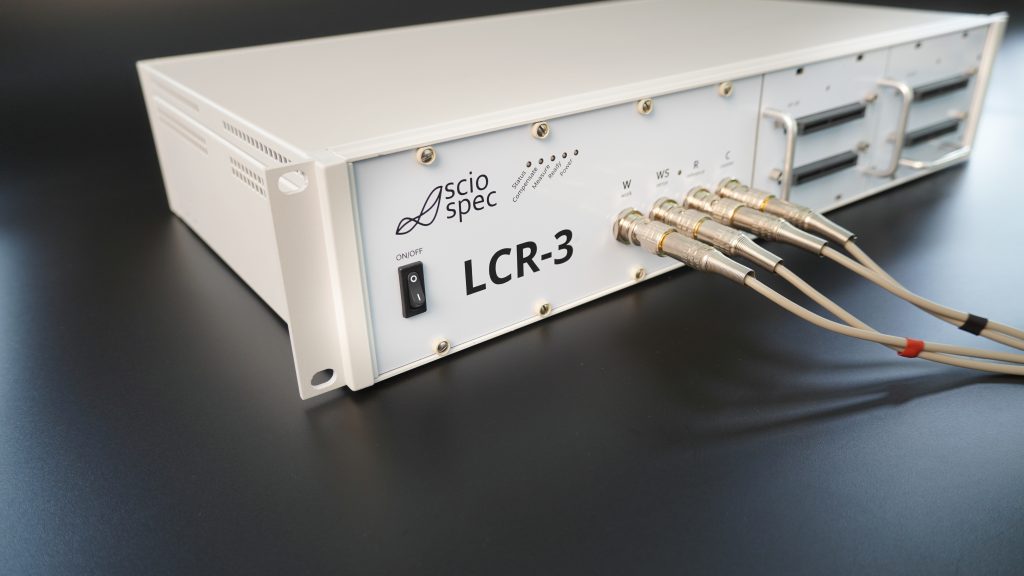

Form Factor | Desktop or 19” rack-mount |
Software Interface | LCR app, Sciospec API, SCPI |
Customization | OEM-ready hardware & software |
Automation | Full support via scripting, LabVIEW, Python, C#, etc. |

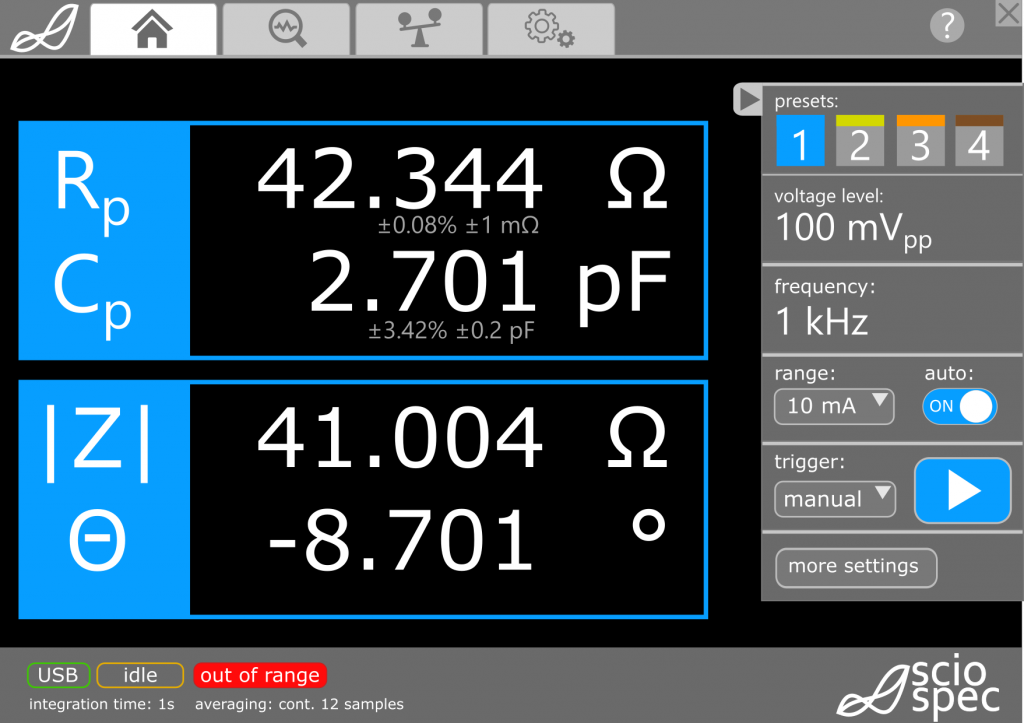

The LCR-3 ships with our intuitive LCR measurement app, offering everything from guided workflows to custom sweep setup, live visualization, and real-time pass/fail metrics. Features include:
Ideal Use Cases Ideal Use Cases
Whether in the lab or on the line, the LCR-3 shines where traditional benchtop meters fall short:
Application Area | Benefit of LCR-3 |

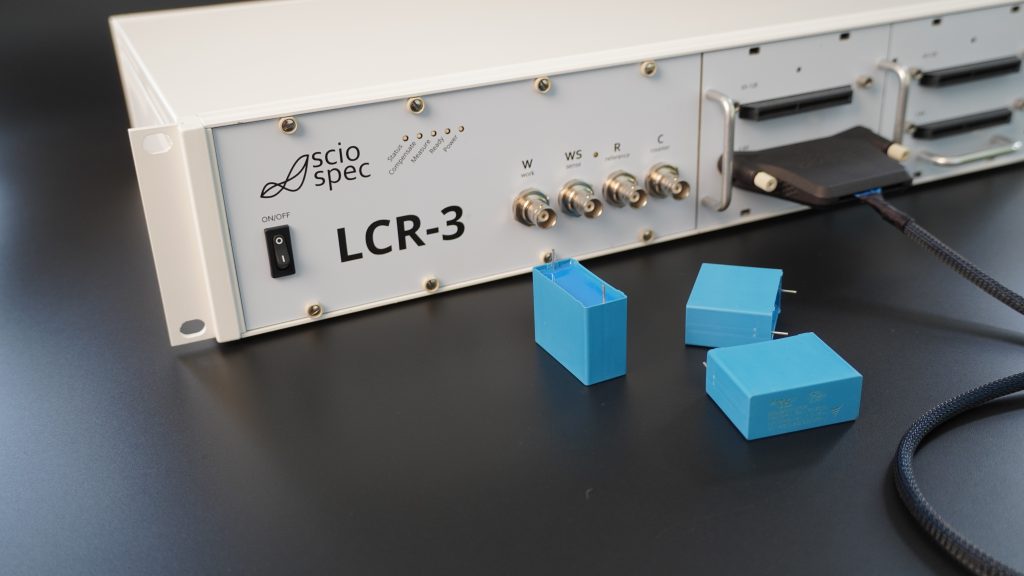

Component manufacturing | Batch test capacitors, inductors, resistors, etc. |
Production QA | High-throughput end-of-line and inline testing |
R&D setups | Scalable multi-channel testing configurations |
OEM test solutions | Flexible hardware and software for integration |
🔄 Already using Sciospec impedance analyzers? The LCR-3 fits seamlessly into your ecosystem.
Options & Extensions Options & Extensions
⚙️ Integrated multiplexers: 32, 64, 128, or 256 port options
🔌 Connector types: SC98 standard, BNC, banana, or custom
🪐 Adapters: Test fixtures for components, sensors, liquid/solid samples
🔄 Software add-ons: Pass/fail testing, automated workflows, custom reporting
🧪 Medical safety options: For use in pre-clinical and biomedical environments
🛒 OEM customization: White-label ready, private software branding available

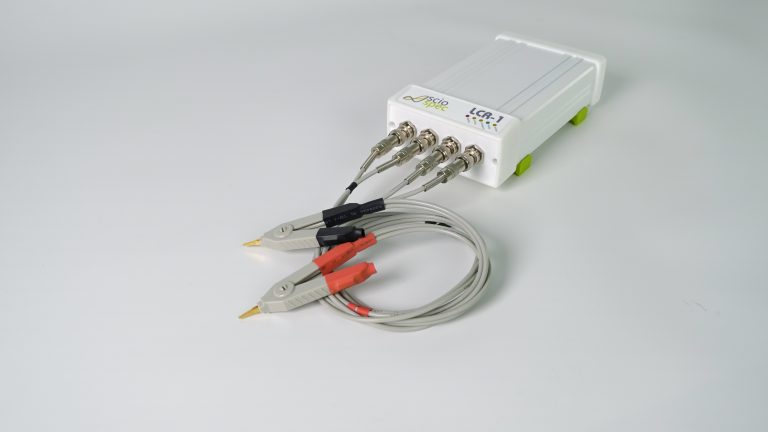

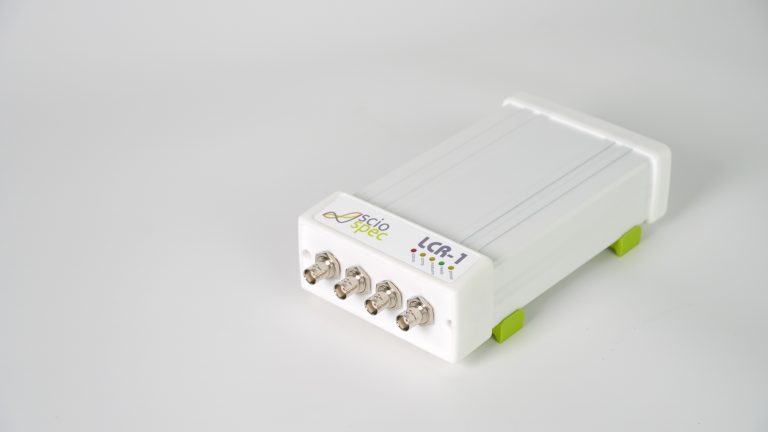

Feature | LCR-1 | LCR-3 |
Precision Core | ✔️ Same | ✔️ Same |
Form Factor | Compact desktop | Desktop or rack-mount |
Multiplexing | None | Integrated (up to 256 ports) |
Automation & API | ✔️ SCPI + Sciospec API | ✔️ SCPI + Sciospec API |
Use Case Focus | Basic single-point testing | Scalable multi-object setups |
Target Audience | Labs, techs, researchers | QA engineers, automation leads |
The LCR-3 is incredibly capable, but if your application pushes the limits of sequential testing, we can go even further. Leveraging our modular architecture (similar to the ISX-5 platform), we can combine multiple LCR modules for true parallel measurements—with or without stackable multiplexing on top.
This opens up exciting possibilities for:
💡 Let’s build it together. Whether you’re looking for off-the-shelf performance or a tailored OEM solution, our team can help you design the perfect configuration.
Looking for deeper insights? – Impedance analyzers

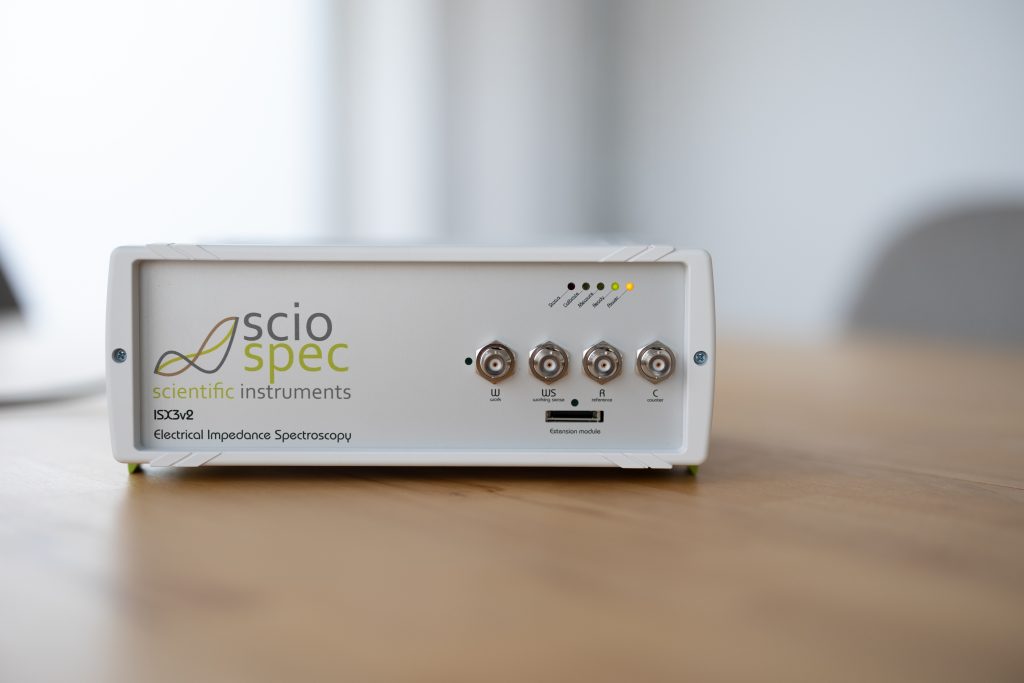

For complex impedance characterization beyond basic LCR parameters, our ISX-3 and ISX-5 impedance analyzers provide:
If your work requires deeper electrical analysis, frequency-dependent modeling, or impedance tomography, Sciospec impedance analyzers are the ideal complement to the LCR-3.
Analyzing energy storage components? Combine LCR with Electrochemical setups
When testing batteries, supercapacitors, or advanced energy materials, component performance often depends on both electrical properties and dynamic behavior under load or cycling.
With Sciospec’s electrochemical platforms, you can:
⚡ Reach out to discuss your hybrid LCR + Electrochemistry setup or check out our potentiostat solutions.
Not quite sure how the LCR-3 fits into your specific testing environment? Whether you’re exploring new workflows, combining measurement techniques, or scaling up to industrial testing,we’re here to help.
🎯 Talk to an expert today and let’s explore how the LCR-3 and the broader Sciospec platform can serve your R&D, QA, or OEM needs.
Configure Your LCR-3 and Request a Quote
Sciospec instruments are modular by design, and the LCR-3 is no exception. With a wide range of extensions, connectors, and software options, we make sure your instrument is the perfect fit for your application whether for lab research, production line QA, or OEM integration.
Fill in your application details and feature requirements below. Our team will get back to you promptly with a tailored quote.
Prefer to talk to someone directly? Email us and we’ll be happy to walk you through the options.
The Sciospec LCR-3 isn’t just another lab instrument—it’s a robust, automation-ready measurement platform that grows with your needs. Whether you’re a component manufacturer seeking scalable testing solutions or an OEM looking to build your own system around best-in-class impedance technology, the LCR-3 delivers:
LCR-3 – Your next step in professional-grade component testing.
Electrical impedance. At its best.
The LCR-3 is Sciospec's standard solution for scaling LCR measurements in lab and industry environments. If you need excellent measurements in even higher channel count in your production line, please reach out to us!
