the Sciospec EIT16

COMPACT. EASY. FAST.

Electrical Impedance Tomography system

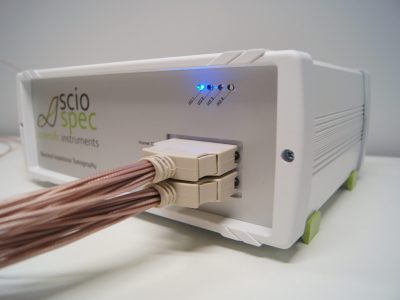

The Sciospec EIT16 is Sciospec’s standard EIT system. It’s a very compact yet powerful instrument with 16 channels. With its outstanding performance the EIT16 has become one of the most popular EIT systems for research and industry.

With its performance and the countless customization opportunities it is put to use in leading research institutes paving the way for new applications of impedance tomography.

key facts

The system is designed for measurements for electrical impedance tomography or general multi-port impedance measurement applications. True parallel measurements and tightly synchronized switching allows for fast frame rates.

16 dual role electrode connections serving both as voltage measurement and current injection ports
Pseudo-differential current source for excitation signals up to 10 mA
Tightly synchronized data acquisition block for truly simultaneous sampling of all sixteen channels
Fast switching ultra-low leakage reed relay injection switch matrix for selection of any combination of 2 out of 16 channels for positive and negative injection ports
Sciospec SineFit algorithm for fast and precise signal extraction
Frequency range from 100 Hz … 1 MHz
Spectral measurements with frequency sweeps with up to 128 frequencies
Current excitation from 100 nA … 10 mA peak amplitude
Frame rates up to 100 fps
Software with ready to go imaging algorithms
Fully customizable – just ask us
OEM available

For easy entry a software provides EIT image reconstruction functionalities for time- and frequency-difference imaging. Alternatively you can just use the MATLAB code and import your data to EIDORS or write your own image reconstruction and import that to our software.

Relevant publications

Conference

EIT2023 in Aachen, Germany

Meet us at EIT 2023 in Aachen! From June 12th to June 14th 2023 the International Conference on Biomedical Applications of Electrical Impedance Tomography (EIT

reference systems

Water content of tablets

Tablets are your business? Water content is a critical parameter? Need to measure water content precisely? TVS is too slow? And other methods are not

Conference

International Workshop on Impedance Spectroscopy (IWIS) 2022

Meet us at this year’s IWIS From September 27th to September 30th 2022 the 15th International Workshop on Impedance Spectroscopy (IWIS) takes place. Sciospec is

reference systems

Sciospec EIT256 – 256-channel electrical impedance tomography (EIT) system

256-channel electrical impedance tomography system 16 groups with 16 channels 256 channels in one setup or 16 channels in 16 different setups (sequentially) Sciospec Software

We've got you covered!

We have a lot of experience with chip based sensors for biosensing using electrochemical and impedance analysis. EIT offers some very promising possibilities in that application domain as well, so we went ahead and created a simple way to work on chip based sensors with our EIT instruments – the EIT slide chip adapters.
Whether you want to design your own sensor from scratch or want to use something off the shelf, it is easy to make it fit with our slide chip system through simple and affordable carrier boards. We are happy to help you with your sensor application development – just contact us.

Check out what our friends at the Leibniz Institute for Solid State and Materials Research Dresden did with it:

Electrical impedance tomography in on-chip integrated microtubular fluidic channels.
SM Weiz, M Medina-Sánchez, K Lee, OG Schmidt, Proceedings of the 18th International Conference on Electrical impedance tomography, p 23.
