the Sciospec ECISadapter

FULL PERFORMANCE AND FLEXIBILITY ON ECIS 8 WELL ARRAYS WITH

The ECIS CULTUREWARE 8 well arrays are a very common choice for a broad range of impedance-based cell experiments like cell growth, cell migration, wounding/healing, barrier function, tox-screening, adhesion and proliferation studies.

With the Sciospec ECISadapter you can bring your ECIS experiments to the next level: more speed, higher resolution, more possibilities. Harness the full power of Sciospec impedance analyzers on your existing ECIS arrays. The ECISadapter just plugs into compatible Sciospec impedance analyzers like the ISX-3 and you´re good to go.

cost-efficient instrumentation setup
flexible high resolution sweeps with up to 2048 frequencies per sweep
bandwidth from DC to 10MHz
very high measurement speed

key facts

adapter for ECIS 8 well arrays fitting the extension port system (e.g. on ISX-3)
8 channels each in two wire configuration (8 work electrodes W and 1 common counter electrode)
layout fitting broad range of ECIS 8 well arrays
small form factor, low profile
incubator-proven
glass bottom for use in combination with microscopic and other optical equipment
easy setup through extension port
fully integrated graphical user-interface in Sciospec software

With the ExtensionPort system the ECISadpter just plugs into compatible impedance analyzers like the ISX-3 and you´re good to go - it´s that simple.

Relevant publications

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

DNA characterization using electrical impedance spectroscopy (EIS) enhanced by magnetic nanoparticles and measured with Sciospec ISX-3.

publication

DNA Characterization Using Bioimpedance and Nanotechnology: EIS for Precise Molecular Sensing

See how Sciospec’s ISX-3 Impedance Analyzer excels in DNA quantification and bioimpedance measurement

Electrical Impedance Imaging setup showcasing real-time visualization of physiological processes using electrode arrays

Empowering Real-Time Electrical Impedance Imaging with Modular EIT Solutions

See how the EIT32 shapes next-generation Electrical impedance imaging

Close-up of a wearable microfluidic biosensor on a sweaty forearm, with glowing blue electrical currents illustrating data transmission for impedance-based sweat analysis.

publication

Non-Invasive Remote Health Monitoring with Microfluidic Impedance Spectroscopy

Home Non-Invasive Remote Health Monitoring with Microfluidic Impedance Spectroscopy Unlocking Non-Invasive Sweat Analysis with Sciospec technology Remote health monitoring is emerging as a transformative approach

supported array types

Just as important as the correct instrument is the sensor type you use. The Sciospec ECISadapter is compatible with 8 well arrays from the ECIS Cultureware family, such as:

ECIS cultureware 8W1E PET

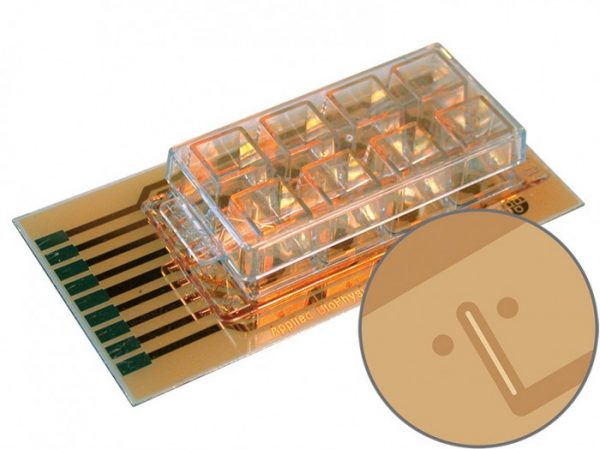

ECIS Cultureware 8W1LE (8W1CXE) PET
ECIS Cultureware 8W2LE PET
ECIS Cultureware 8W2X1E
ECIS Cultureware 8W10E PET
ECIS Cultureware 8W10E+ PET
ECIS Cultureware 8W20idf PET
ECIS Flow Array 1 Channel µ-Slide with 8x1E (1F8x1E) PC

Need something more tailored towards your needs? We can help you design and manufacture your own sensor structures specifically targeting your application. Integration of fluidic handling and temperature control is also available.

ExtensionPort System

For flexible extension of its application possibilities application specific frontends and adapters can be connected to many of our instruments through the ExtensionPort system. Interface and specifications for the ExtensionPort are fully user accessible dramatically simplifying customer`s developments for and with systems like the ISX-3, ISX-3mini or ISX-5. The connector carries measurement signals for 2,3 and 4-electrode configuration, supply rails and digital IOs, which can optionally be configured as serial interfaces (I2C, UART).
