Impedance Analyzers

An impedance analyzer is a precision instrument optimized for broadband complex impedance spectroscopy, whereas a standard LCR meter is typically designed for single-point or limited-frequency component parameter estimation. While LCR meters often utilize bridge methods for high-accuracy component binning, impedance analyzers generally employ current-voltage (I/V) methods to maintain high dynamic range and precision across wide frequency sweeps. The analyzer generates frequency-dependent spectra, such as Bode and Nyquist plots, using phase-sensitive detection to characterize the reactive and resistive components of a system under test.

A dedicated impedance analyzer is the preferred tool for high-precision characterization in the millihertz to 100 MHz regime, particularly when the Device Under Test (DUT) exhibits a wide absolute impedance range spanning from mΩ to TΩ. VNAs are RF-centric instruments utilizing a fixed reference impedance (typically 50 Ω) for S-parameter measurement in the high-frequency and microwave regimes. While VNAs are powerful for GHz-regime reflection measurements, they lack the low-frequency accuracy and high dynamic range required for materials characterization, bioimpedance, or electrochemical spectroscopy.

Electrochemical Impedance Spectroscopy (EIS) is a specific subset of impedance analysis that characterizes systems, such as batteries or biosensors, under controlled DC potentials (potentiostatic) or currents (galvanostatic). While a general-purpose impedance analyzer characterizes passive components and materials, EIS requires hardware—often a potentiostat or specialized analyzer like the ISX-3—capable of maintaining electrochemical stability while sweeping the AC excitation signal. This methodology allows for the study of interfacial kinetics, mass transport, and state-of-health (SoH) diagnostics in energy and biological systems.

Base accuracy is a single-point specification that rarely reflects real-world performance across a wide operational envelope; evaluators must instead rely on accuracy-contour plots to determine precision at specific frequency and impedance magnitude intersections. Accuracy is highly dependent on both the test frequency and the absolute value of the measured impedance. For instance, a precision instrument may offer 0.01% accuracy between 1 Ω and 1 GΩ up to 2 MHz, but this degrades significantly as measurements approach frequency limits or extreme impedance values.

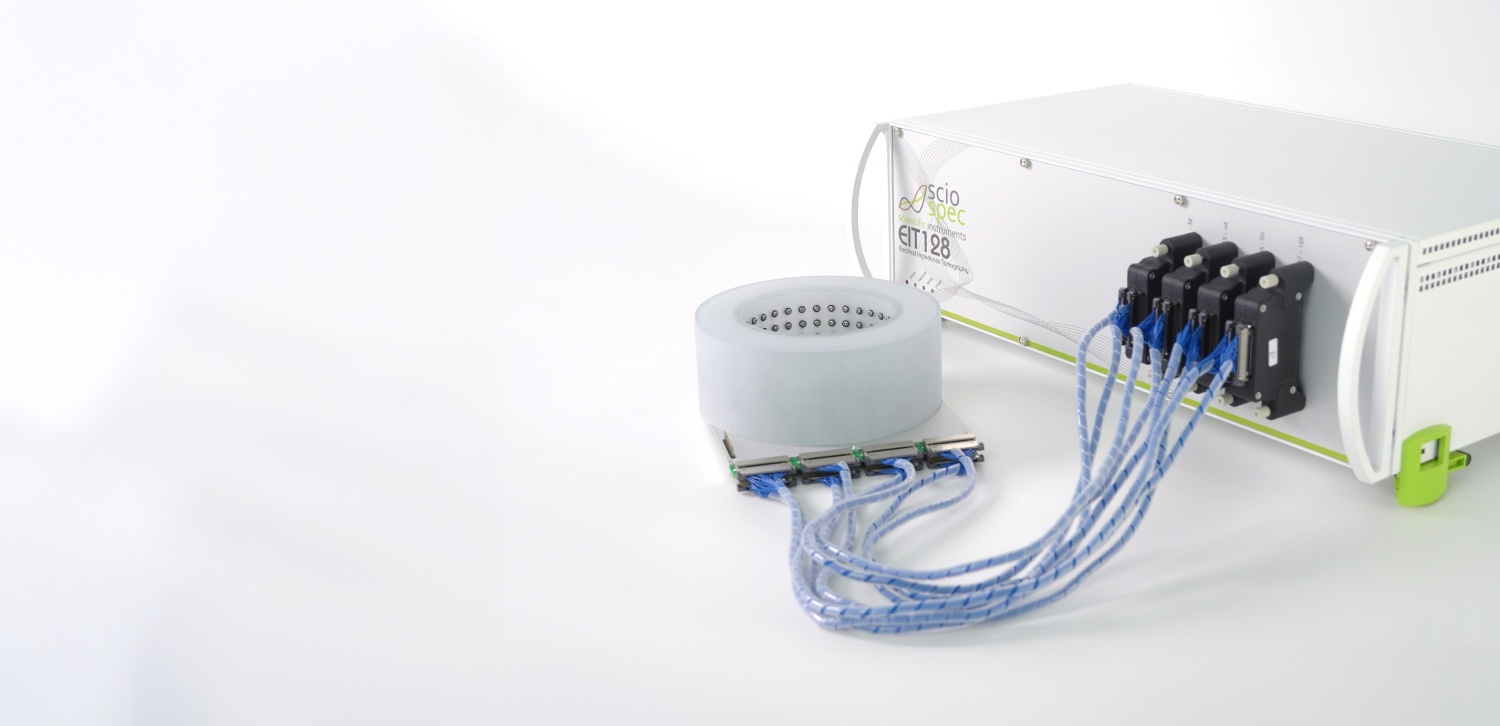

Sequential multiplexing utilizes a single measurement core to scan multiple ports, offering a cost-effective solution for slow-changing systems, while fully parallel architectures provide simultaneous acquisition for higher time resolution and throughput. Multiplexed systems (e.g., MUX32/64 modules) can scale to a high number of ports but are limited by switching speeds and sequential scan times. Fully parallel systems, such as the ISX-5, eliminate switching latency and are critical for capturing transient phenomena or synchronizing massive sensor arrays in automated test equipment (ATE).

Yes, an impedance analyzer can be integrated into complex systems using modular measurement cores or embedded boards that bypass the need for custom analog front-end development. Sciospec’s OEM solutions provide pre-calibrated measurement technology that can be seamlessly embedded into diagnostic devices or industrial setups. These platforms support headless operation through native SDKs (Python, C++, LabVIEW) and feature fast hardware synchronization, isolated I/O, and trigger capabilities for tight integration into automated software stacks.

A four-terminal (4-wire) connection is required whenever the lead and contact resistance of the test setup approach the magnitude of the DUT impedance, or when high-frequency parasitics threaten measurement stability. By using separate pairs for excitation current and voltage sensing, the Kelvin connection eliminates the voltage drop across the measurement leads from the final result. This is essential for low-impedance applications such as battery diagnostics or when characterising high-performance electronic components.

No, while an oscilloscope can visualize phase shifts between voltage and current, it lacks the precision current sensing, phase-sensitive detection, and automated frequency sweep capabilities required for valid impedance spectroscopy. Multi-meters are basic tools for single-point resistance or capacitance measurement and cannot generate the complex impedance spectra (Z = R + jX) necessary for research or industrial characterization. Only dedicated analyzers provide the dynamic range, frequency resolution, and modeling support required for technically sophisticated applications.

Handling high DC bias requires an analyzer with integrated bias control or external interface modules to prevent the measurement front-end from saturating under the DC load. In battery applications, the instrumentation must handle high discharge currents while maintaining a small-signal AC excitation for spectroscopy, often requiring specialized fixtures and safety derating. For semiconductors, precise voltage bias is critical for mapping performance under realistic operating conditions without inducing catastrophic failure of the DUT or the instrumentation.

A precision impedance analyzer is unsuitable for GHz-regime microwave testing, basic low-accuracy continuity checks, or safety-critical clinical monitoring where bedside-specific medical workflows are mandated. It is not a cost-effective choice for simple, fixed-frequency 1% accuracy LCR checks or “plug-and-play” use by non-experts without a background in equivalent circuit modeling. Furthermore, if the application requires high-power characterization beyond standard instrument limits, external power interfaces and meticulous safety protocols are mandatory.

Choosing the right impedance analyzer depends on frequency range, impedance range, measurement accuracy, and system architecture. Key parameters include frequency coverage (from mHz to MHz or higher), impedance range (from mΩ to TΩ), and how accuracy varies across this range. In addition, channel count, multichannel capability, and integration requirements such as API access or automation support play a critical role. For applications like bioimpedance, electrochemical impedance spectroscopy (EIS), or material characterization, broadband impedance analyzers with high dynamic range are required, while simpler component testing may be sufficiently covered by an LCR meter.

Modern impedance analyzers are designed for seamless integration into automated test equipment (ATE) and industrial environments. Integration is typically achieved through software APIs and hardware control interfaces, including SDKs for Python, C++, or LabVIEW, as well as remote control via USB or Ethernet. Many systems support hardware trigger inputs and outputs for synchronization with external equipment and allow headless operation without a graphical user interface. These features enable impedance measurement systems to operate as embedded components within automated workflows, production lines, or OEM devices.

Multiplexed multichannel impedance measurement uses a single measurement core that sequentially scans multiple channels, offering a cost-effective solution for systems with slow dynamics. In contrast, parallel multichannel impedance measurement uses multiple measurement cores to acquire data simultaneously across channels, enabling significantly higher temporal resolution. The choice between multiplexing and parallel architectures depends on the required measurement speed, system dynamics, and throughput, with parallel systems being essential for time-sensitive or high-throughput applications.

Measurement speed in impedance spectroscopy is determined by acquisition time per frequency point, number of frequencies per sweep, and system architecture. Faster measurements reduce total test time but may affect signal stability and accuracy, particularly at low frequencies where longer integration times are required. In multichannel systems, speed is also influenced by whether channels are measured sequentially through multiplexing or simultaneously using parallel acquisition. Optimizing measurement speed requires balancing throughput, resolution, and accuracy based on the application.

Impedance analyzer accuracy varies significantly across frequency and impedance range. While base accuracy specifications describe performance at specific conditions, real-world measurement accuracy depends on frequency, impedance magnitude, and the measurement setup, including cabling and fixtures. Accuracy contour plots provide a more realistic representation of performance across the full operating range and are essential for evaluating how an impedance analyzer will perform in a given application.

Impedance analyzers are widely used for battery testing and electrochemical impedance spectroscopy (EIS), where they provide insight into processes such as charge transfer, diffusion, and degradation. These applications require stable AC excitation signals, precise phase measurement, and often controlled DC bias conditions. In many cases, additional hardware such as potentiostats or bias units is required to ensure accurate impedance measurement under real operating conditions.
