Impedance Analysis Accessories

Reliable Connections for Every Setup

Accurate impedance measurements depend not only on the core system but also on well-designed accessories. Test fixtures and measurement cable sets are key components that ensure secure connections, simplify experimental setups and maintain stable reliable performance across all applications.

By providing seamless integration and consistent results these accessories form an essential part of any impedance measurement workflow.

Learn More
Impedance Measurement Accessories

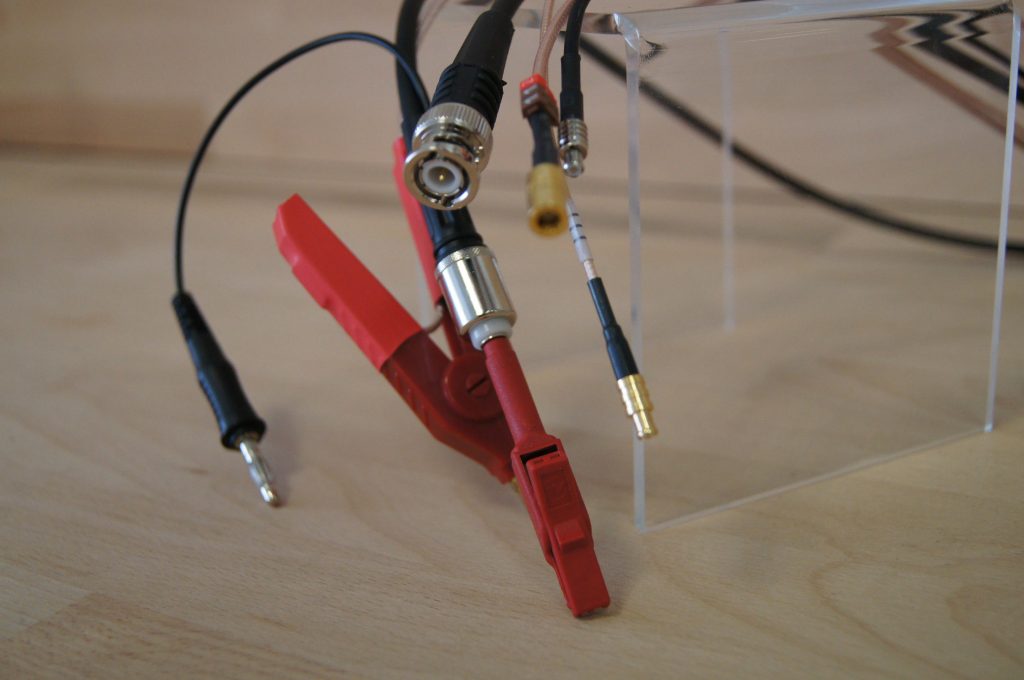

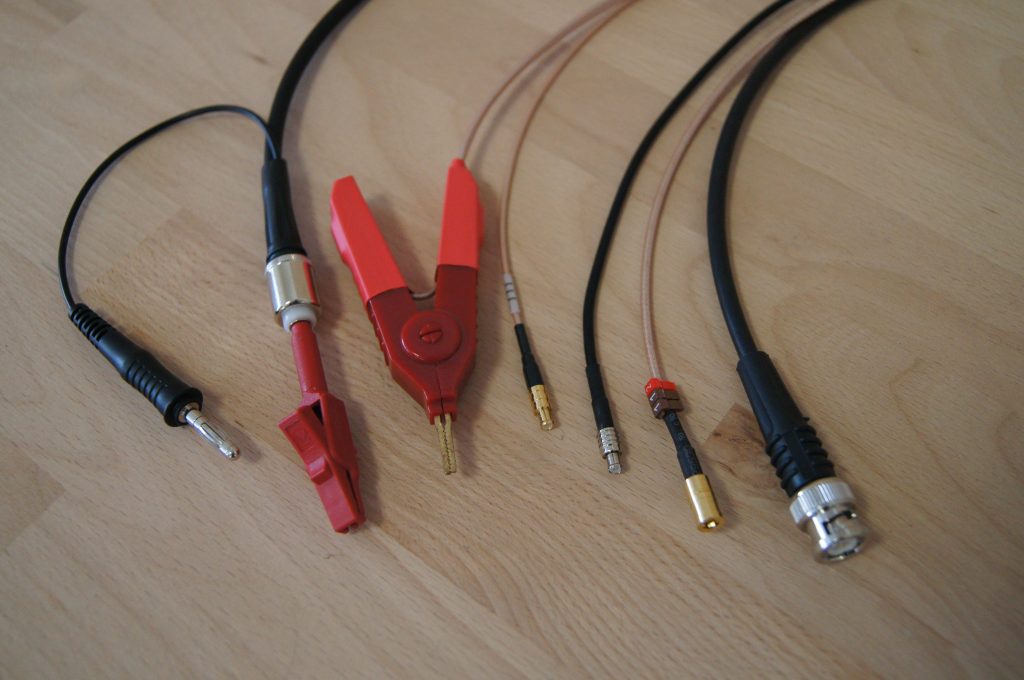

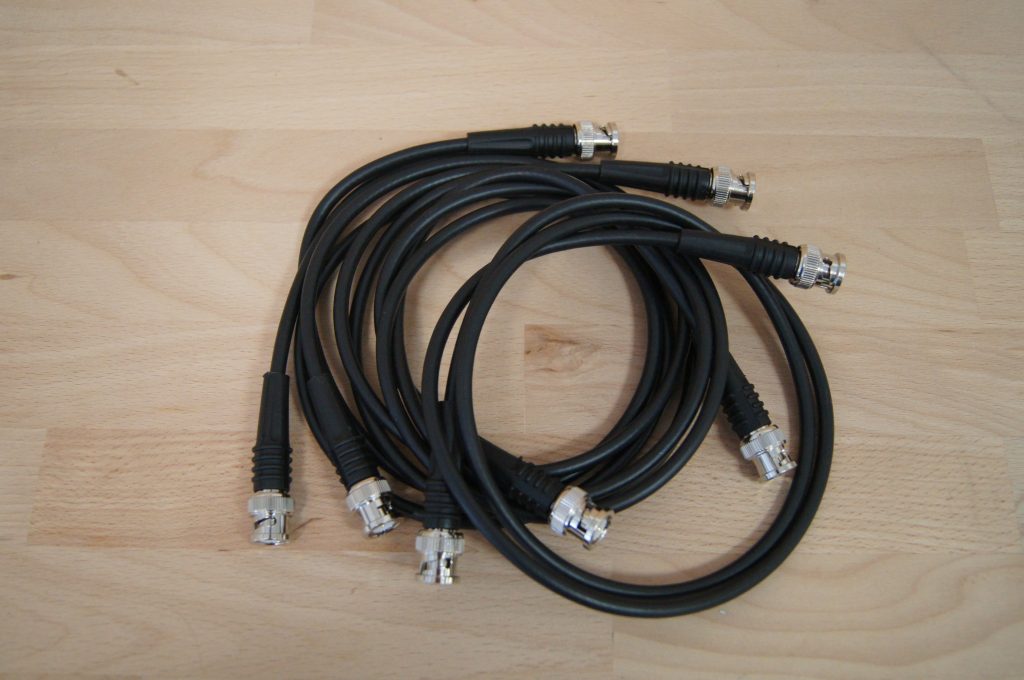

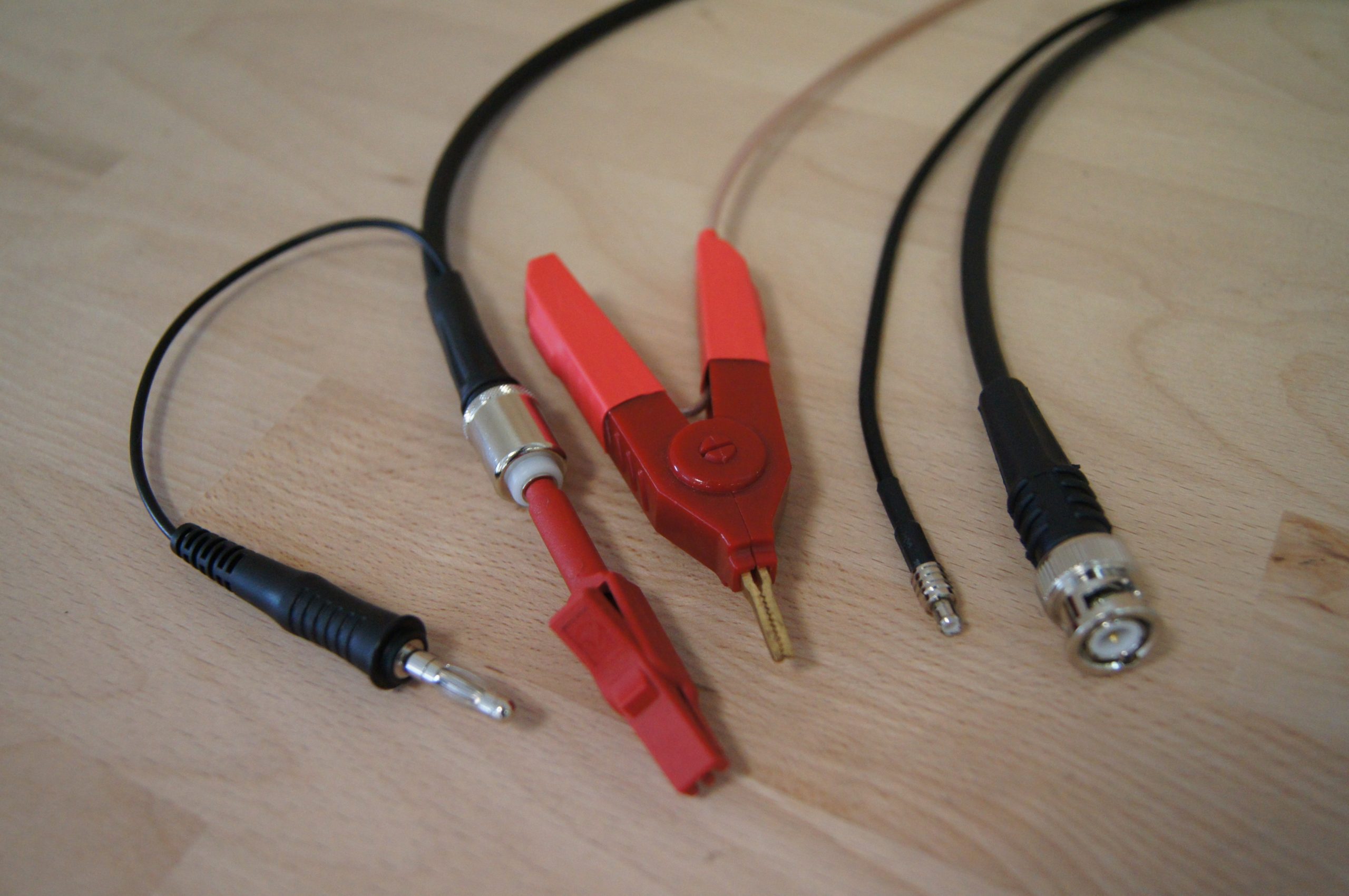

Measurement cable sets

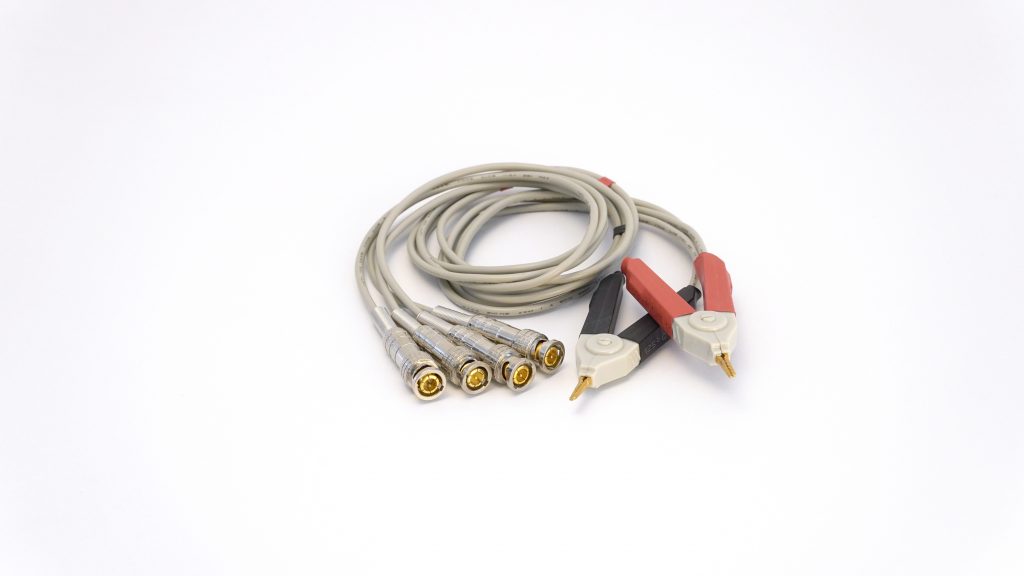

  •  For clamp/clip connection
  • Use with ISX-3, LCR-1
  • Cable length: 1 m
  • Use with ISX-3
  • Length: 1 m
  • Use with ISX-3
  • Length: 1 m

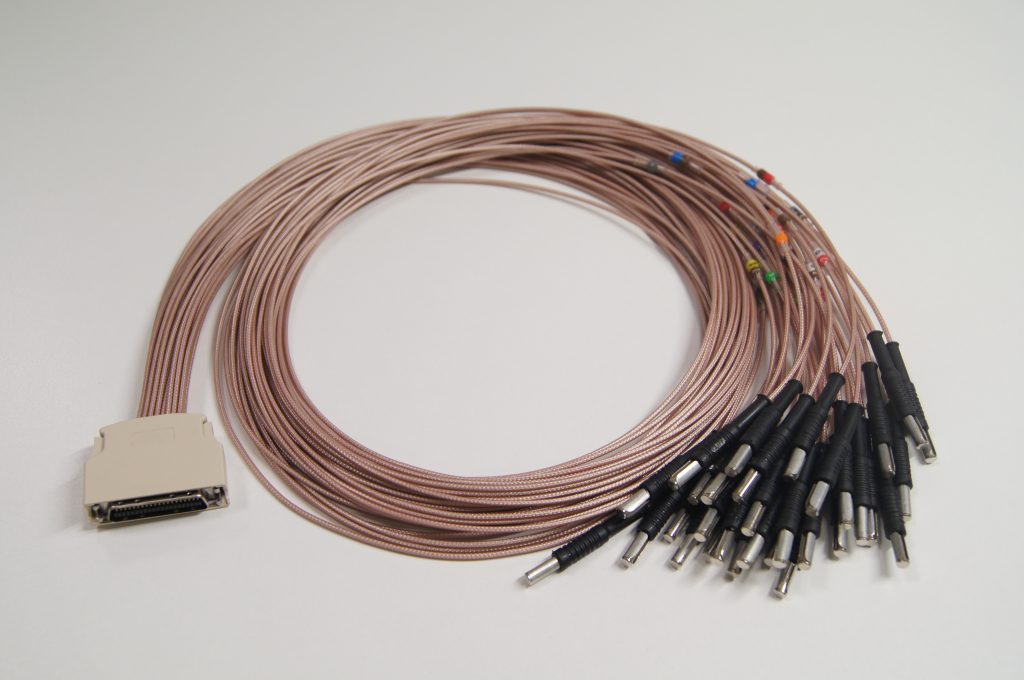

  • MDR – banana plug (+ 32 croco clips)
  • Length: 1 m

Test fixtures

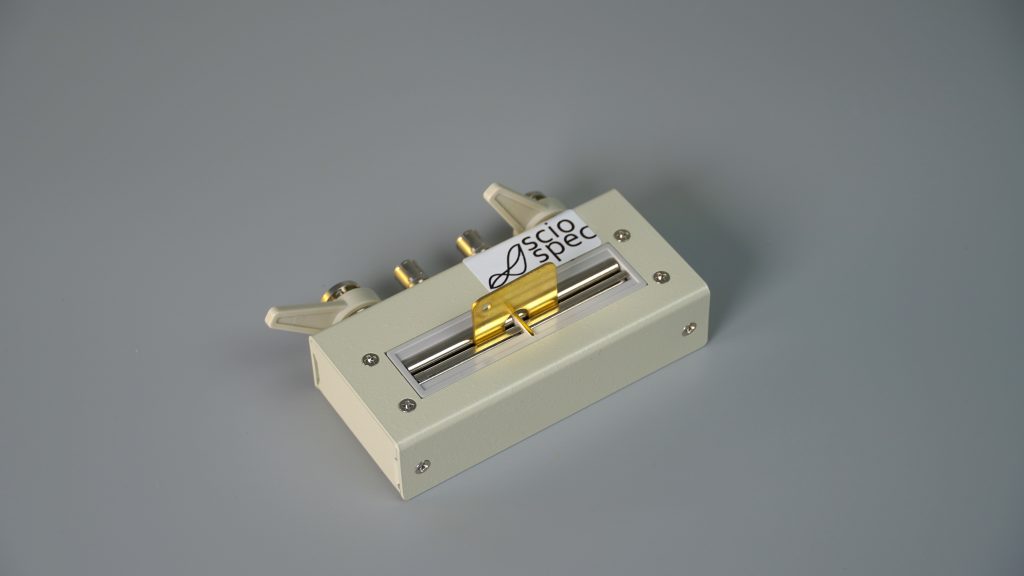

  • For easy connection of wired components for measurements up to 10 MHz
  • Short plate included
  • Size: 105 mm x 25 mm x 68 mm (width x height x depth)
  • Weight: ca. 150 g

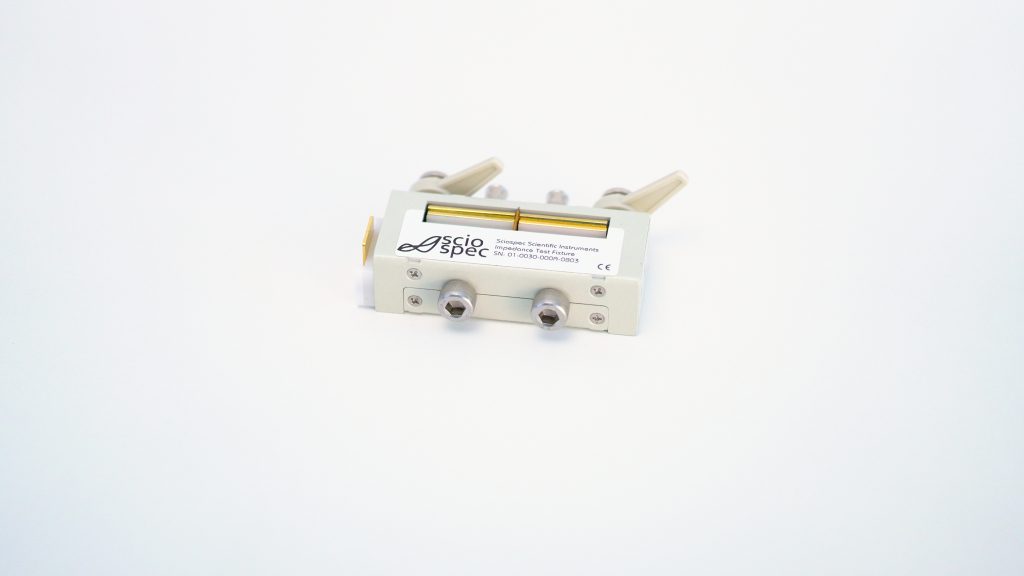

  • For easy connection of wired components for measurements up to 30 MHz
  • Short plate included
  • Size: 98 mm x 25 mm x 65 mm (width x height x depth)
  • Weight: ca. 250 g
  • For easy connection of wired components for measurements up to 10 MHz
  • Short plate included
  • Size: 105 mm x 25 mm x 68 mm (width x height x depth)
  • Weight: ca. 150 g
  • For easy connection of wired components for measurements up to 30 MHz
  • Short plate included
  • Size: 98 mm x 25 mm x 65 mm (width x height x depth)
  • Weight: ca. 250 g

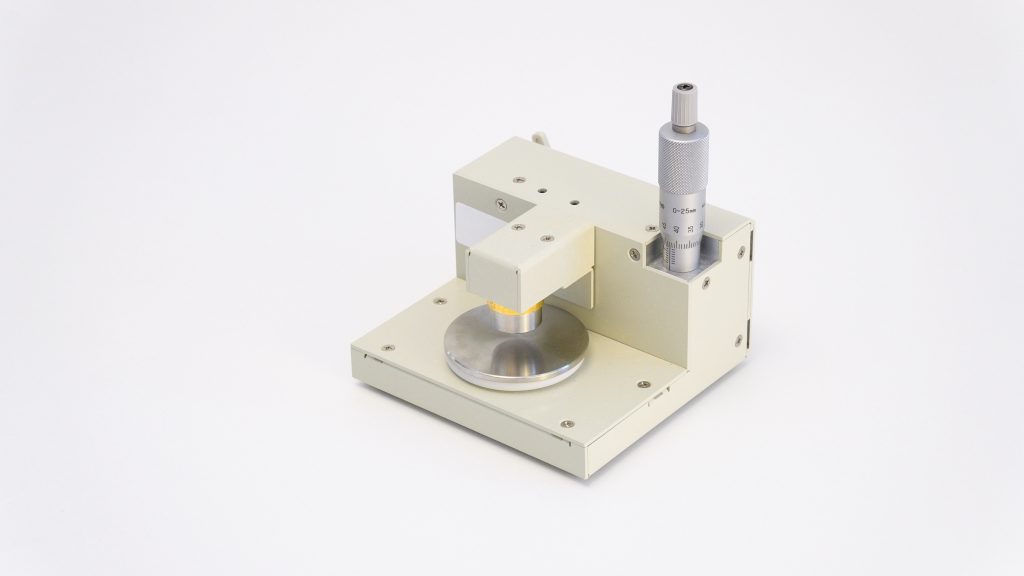

  • For connection of foils and thin films with thickness up to 10 mm
  • Size: 115 mm x 155 mm x 126 mm (width x height x depth)
  • Weight: ca. 850 g

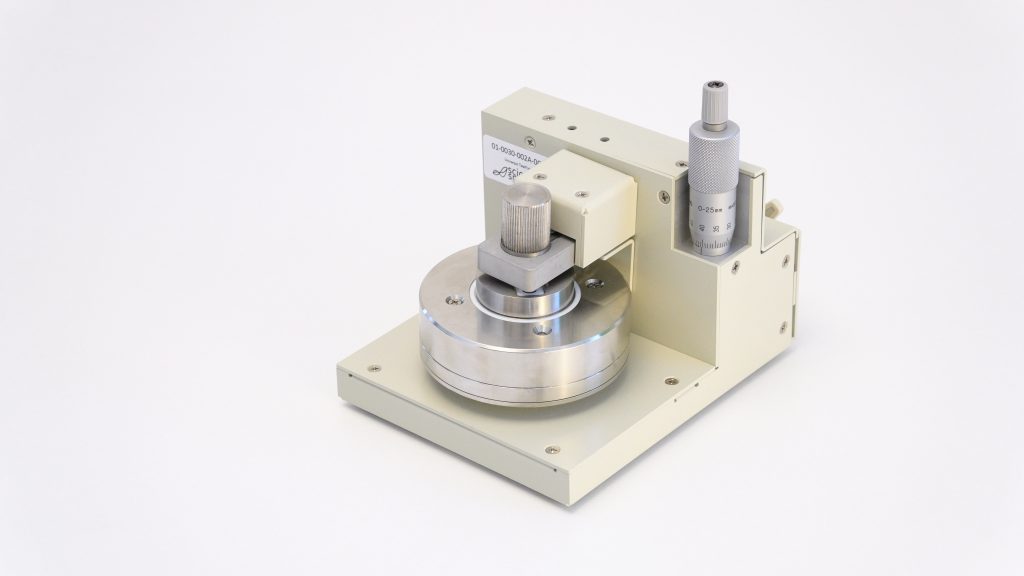

  • For measuring liquids and solutions
  • Size: 115 mm x 129.5 mm x 159 mm (width x height x depth)
  • Weight: ca. 1700 g
