Name: ISX-3
Availability: InStock

fast. precise. affordable.

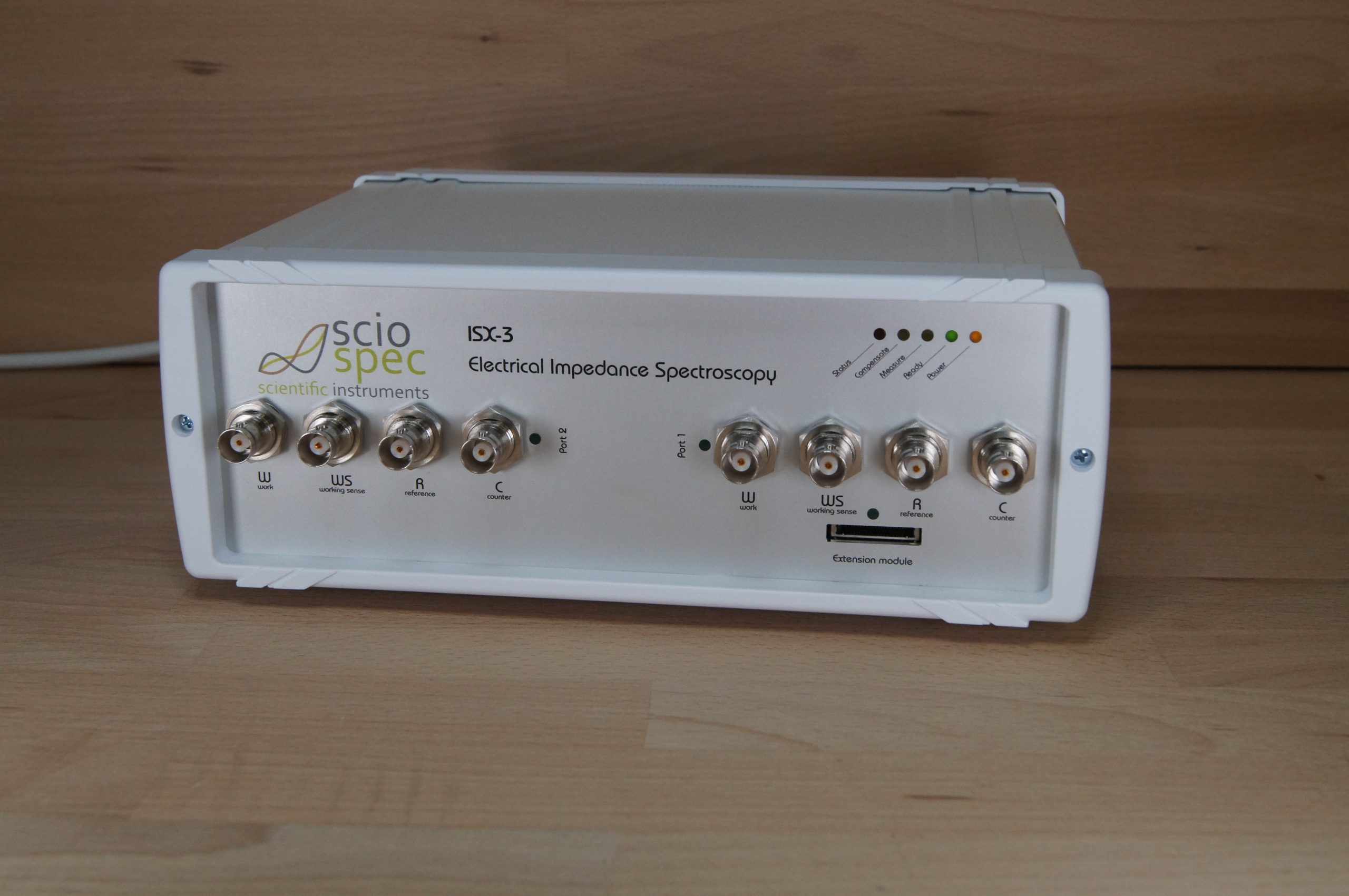

the ISX-3

You want to use impedance spectroscopy and not spend a fortune? You like it simple, but still need precision and speed? The compact ISX-3 impedance analyzer is your solution.

In standard configuration the ISX-3 is equipped with Sciospec’s IF frontend with 4-port BNC interface supporting simple 2 point measurements, as well as 3 and 4 electrode configurations. Within the measurement range from DC to 10MHz it covers a dynamic range of 180dB (Ohm…GOhm) resulting in a base precision better than 0.1%.

ISX-3 key facts

compact, single channel impedance analyzer
IF Frontend DC...10MHz, Ohm...GOhm
2, 3 and 4 electrode configurations
high resolution (up to 2048 frequencies per sweep)
precision <0.1%
+/- 1V DC Bias
ExtensionPort for application specific frontends
ultra fast hardware synchronization through sync in/out connectors
simple connection through High Speed USB, Ethernet or Wireless LAN
PC-based control & data analysis (Sciospec software suit included)
Sciospec Com-Interface for full instrument control from Java, C, LabView, Matlab etc.

As one of Sciospec’s first products the ISX-3 has long proven its worth in everyday use. Today it is put to use in leading research institutes across Europe paving the way for new applications of impedance spectroscopy thanks to its outstanding performance and unbeatable cost efficiency. Find some selected publications here

relevant publications

browse through some scientific publications and discover where Sciospec technology helps scientists and engineers advancing research and pushing boundaries.

powerful options

frontpanel connectors: BNC, SMA, MCX, DSUB, custom
internal multiplexer options for sequential multichannel capabilities
IOport digital interface connector for external sensors and other hardware
wireless interfaces
medical grade power supply
temperature controller module
precision multichannel temperature monitoring module for most common temperature sensor types
customized current and voltage ranges
2nd channel option
and many more

Standard Interfaces

The ISX-3 is controlled via High Speed USB or Ethernet. Optionally wireless LAN is available. The ISX-3 comes with Sciospec’s PC-based software for graphical configuration and data analysis. Additionally the system can be completely controlled the Sciospec Com-Interface. Custom code in Java and C are just as possible as the integration in LabView or Matlab.

Sync Ports

synchronize with the rest of the world

For synchronization with other devices and integration into more complex laboratory setups fully isolated ultra fast and highly flexible programmable hardware synchronization through sync in/out connectors (digital) is available as hardware option.

IOport

For simple lab automation and control/read out of additional hardware or sensors the ISX-3 can optionally be equipped with the IOport. This is a D-Sub-Micro-D connector with 8 digital IOs and 2 temperature sensor connections. As with the ExtensionPort the digital IOs can also be configured as serial interfaces (I2C, UART).

ExtensionPort System

For flexible extension of its application possibilities application specific frontends and adapters can be connected through the ExtensionPort system. Interface and specifications for the ExtensionPort are fully user accessible dramatically simplifying customer`s developments for and with the ISX-3. The connector carries measurement signals for 2,3 and 4-electrode configuration, supply rails and digital IOs, which can optionally be configured as serial interfaces (I2C, UART).
