FAST. PRECISE. PATIENT-SAFE.
You want to use impedance spectroscopy in a medical research application? You like it simple, precise and fast and you don't want to worry about patient safety? Then check out the Medical Research ISX-3 impedance analyzer.
It bases on our ISX-3 impedance analyzer. It is equipped with Sciospec’s IF frontend with 4-port BNC interface supporting simple 2 point measurements, as well as 3 and 4 electrode configurations. Within the measurement range from 100 mHz to 10 MHz (extendable to 40 or 100 MHz) it covers a dynamic range of 300dB (mOhm…TOhm) with a base precision of 0.01%.
Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

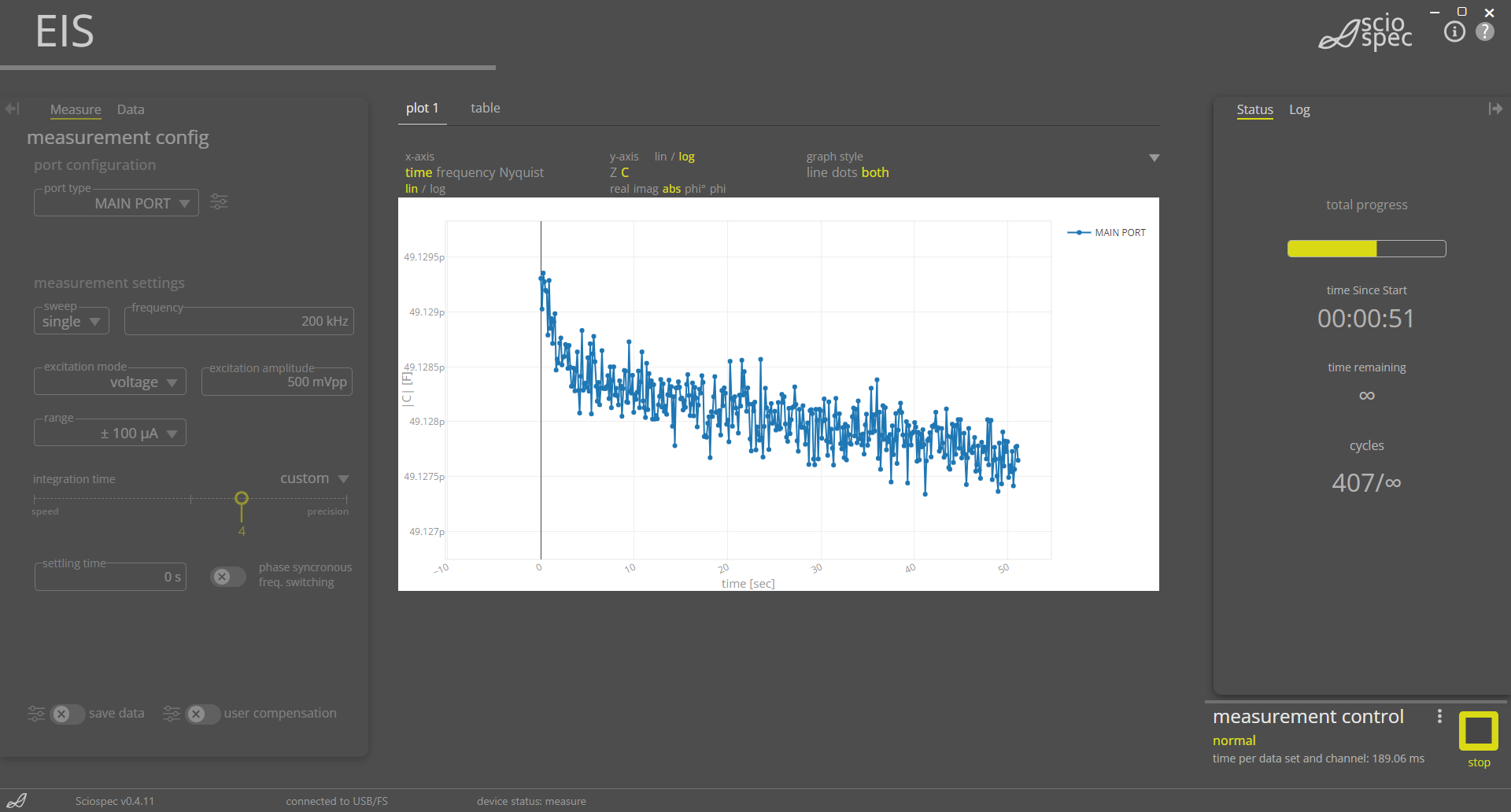

In a very simple setup we used the Medical Research ISX-3 with a 32-channel MUX to measure the forearm impedance change caused movements of the hand.
The ISX-3 impedance analyzer is not a medical product and as such its intended purpose does not include diagnosis and/or treatment of patients. But the Medical Research ISX-3 includes several added safety measures specified in accordance with DIN EN 60601-1:2013-12 "Medical electrical equipment – Part 1: General requirements for basic safety and essential performance". These measures ease the application for excemptions for experiments on patients.
